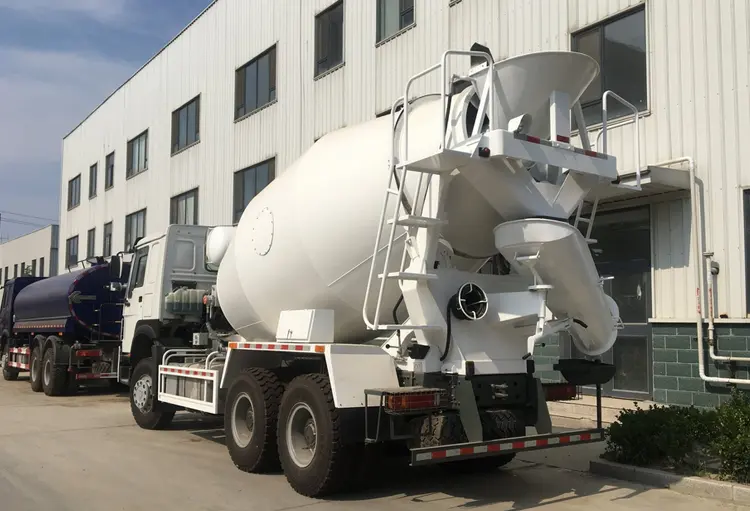

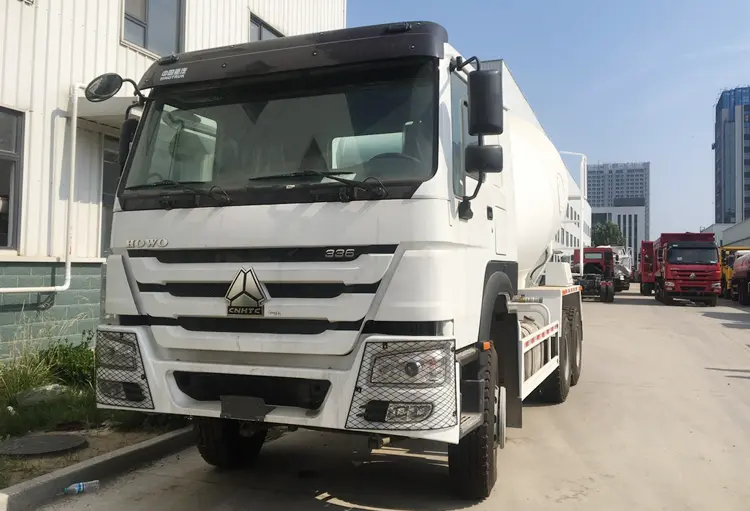

Optimized design and stability: Howo mixer truck, through the reasonable optimization of axle load distribution and tank design, the low center of gravity design is realized, which enhances the driving stability of the vehicle, effectively reduces the wear and tear of the tires, and prolongs the service life.
Modularized design and operation convenience: The front platform support adopts the structure of “Eiffel Tower”, while the back platform draws on the rigid lines of “ship deck”, which effectively reduces wind resistance and ensures the high elasticity of the structure. This Howo mixer truck combination design effectively reduces wind resistance and ensures high elasticity, high strength and high bearing capacity of the structure. At the same time, the vehicle is equipped with a three-dimensional assembled oil pump transmission system, which has wide versatility and provides users with great operational convenience and peace of mind.
Flexibility of the cleaning system: The cleaning system is fully upgraded, and the one-piece water filling connector is designed to adapt to a variety of water intake methods, which greatly improves the flexibility and efficiency of the cleaning operation.
Brand |
SINOTRUK |
Product name |
Sinotruk howo concrete mixer truck 10m³ |
Truck model |
ZZ5257GJBN3847W |
Engine model |
WD615.47,371hp,euro 2 |
Driving Position |
Left/Right |
Type |
Water-cooled,four strokes,6 cylinders in line,turbocharged, directly injection |
Total Weight |
25,000kg |
Curb Weight |
10580 |
Max speed(km/h) |
78 |
Front/ Rear axle |
HF9/HC16 |
Gear Box |
HW19710,10 forwards and 2 reverse |
Dimension(Lx W xH)(unloaded)(mm) |
9040x2496x3980 |
Overhang(front/rear) (mm) |
1500/2365 |
Wheel base (mm) |
3825+1350 |
Tyres |
12.00R20/ Tubeless tire 10+1 |
Drum rotation speed |
0-14r/min |
Feeding Speed |
>3.5m3/min |
Water Tank Volume |
400L |
Discharge Remain Ratio |
<0.2% |
Water supply |
Pressing type |
