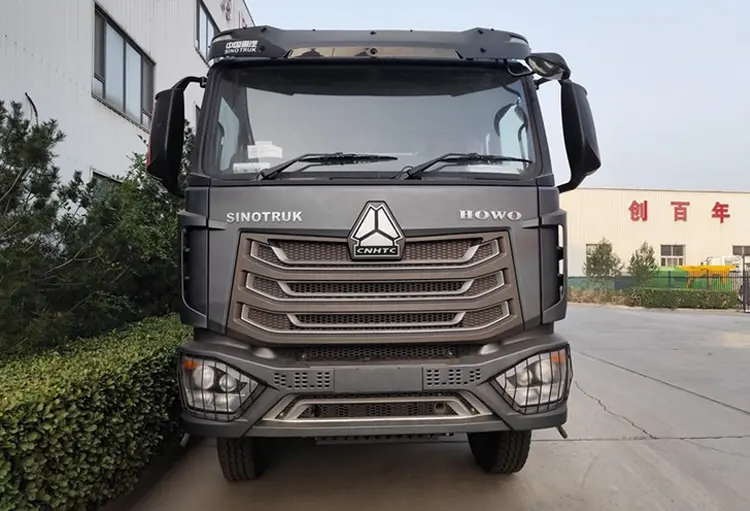

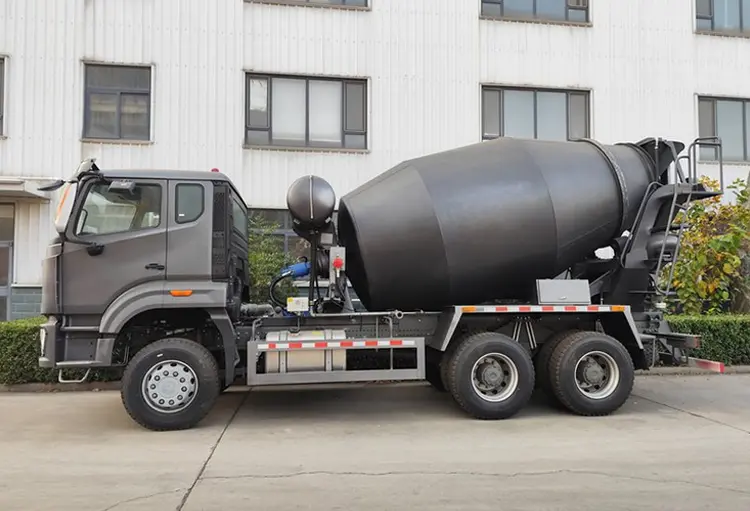

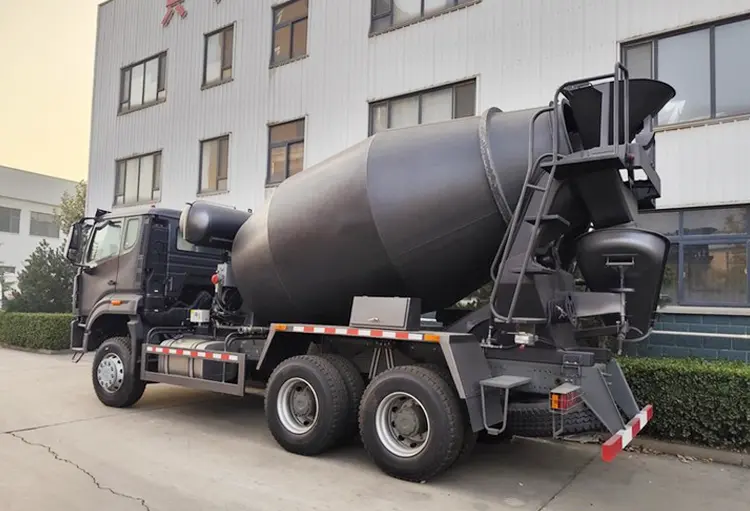

Sinotruk howo 6×4 cement tanker truck is a supporting equipment specialized in transporting commercial concrete produced by concrete plants, which is essential for the construction of roads,airports, water conservancy projects and large-scale building projects.
-.The optional volume of the tank is 8-16 square meters.
-.Adopt world famous motor brand EATON motor.
10 wheel Sinotruk howo 6×4 cement tanker truck specification only for your reference,we will recommend other model SINOTRUCK cement tanker truck basic your request.
The volume of Sinotruk howo 6×4 cement tanker truck can be chosen from 8-16 cubic meter, the tanker body is made of Q355 material, which is characterized high strength, hardness and long service life compared with Q235, and the accessories mainly adopt the hydraulic pump and motor of EATON and the reducer of BONFIGLIOLI.
Sinotruk howo 6×4 cement tanker truck adopts WEICHAl engine, the unique chassis structure of WEICHAI engine is convenient for maintenance and reduces the workload, with low fuel consumption,high reliability, long service life and high torque. Besides, it emits much less harmful gas and is harmless to the environment.
Brand |
SINOTRUK |
Product name |
Sinotruk howo concrete mixer truck 10m³ |
Truck model |
ZZ5257GJBN3847W |
Engine model |
WD615.47,371hp,euro 2 |
Driving Position |
Left/Right |
Type |
Water-cooled,four strokes,6 cylinders in line,turbocharged, directly injection |
Total Weight |
25,000kg |
Curb Weight |
10580 |
Max speed(km/h) |
78 |
Front/ Rear axle |
HF9/HC16 |
Gear Box |
HW19710,10 forwards and 2 reverse |
Dimension(Lx W xH)(unloaded)(mm) |
9040x2496x3980 |
Overhang(front/rear) (mm) |
1500/2365 |
Wheel base (mm) |
3825+1350 |
Tyres |
12.00R20/ Tubeless tire 10+1 |
Drum rotation speed |
0-14r/min |
Feeding Speed |
>3.5m3/min |
Water Tank Volume |
400L |
Discharge Remain Ratio |
<0.2% |
Water supply |
Pressing type |
Sinotruk howo 6×4 cement tanker truck | Howo concrete mixer truck | Sinotruk concrete mixer
Sinotruk howo 6×4 cement tanker truck | Howo concrete mixer truck | Sinotruk concrete mixer
Sinotruk howo 6×4 cement tanker truck | Howo concrete mixer truck | Sinotruk concrete mixer
Engine Rated Power : 245kW
Total Weight: 25,000kg
Curb Weight: 10580kg
Engine Rated Power : 245kW
Total Weight: 25,000kg
Curb Weight: 10580kg
Engine Rated Power : 245kW
Total Weight: 25,000kg
Curb Weight: 10580kg
Horse Power (HP)/(KPM): 390HP
Total Weight: 14170kg
Volume : 12 CBM
Horsepower: 251-350hp
Tank Volume: 15001-30000L
Load Capacity: 21-30t
Horsepower: 251-350hp
Tank Volume: 15001-30000L
Load Capacity: 21-30t
Horsepower: 251-350hp
Tank Volume: 15001-30000L
Load Capacity: 21-30t
Horsepower: 251-350hp
Tank Volume: 15001-30000L
Load Capacity: 21-30t
