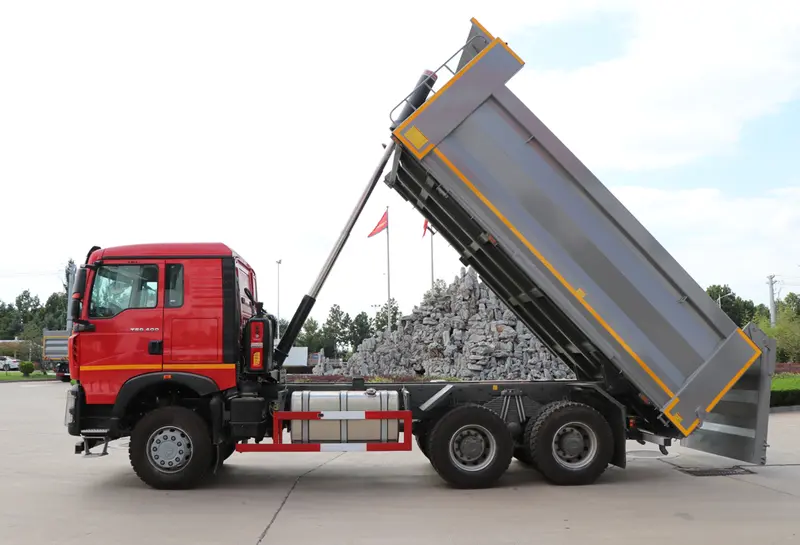

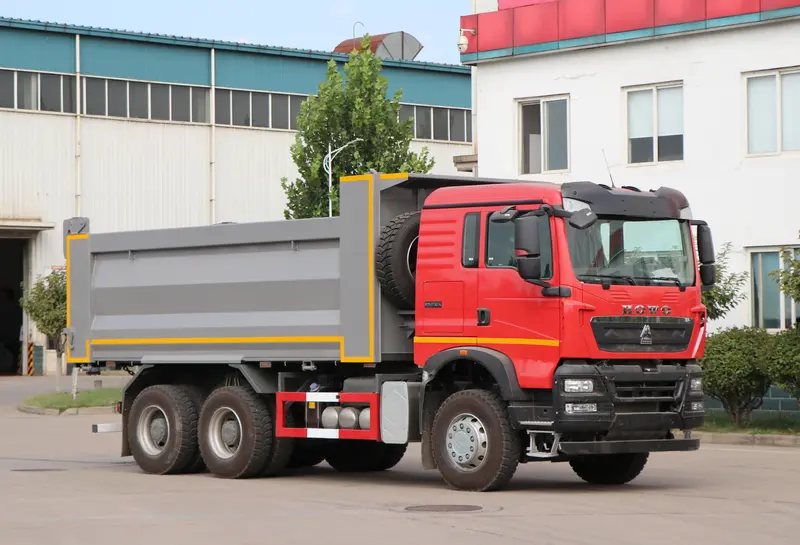

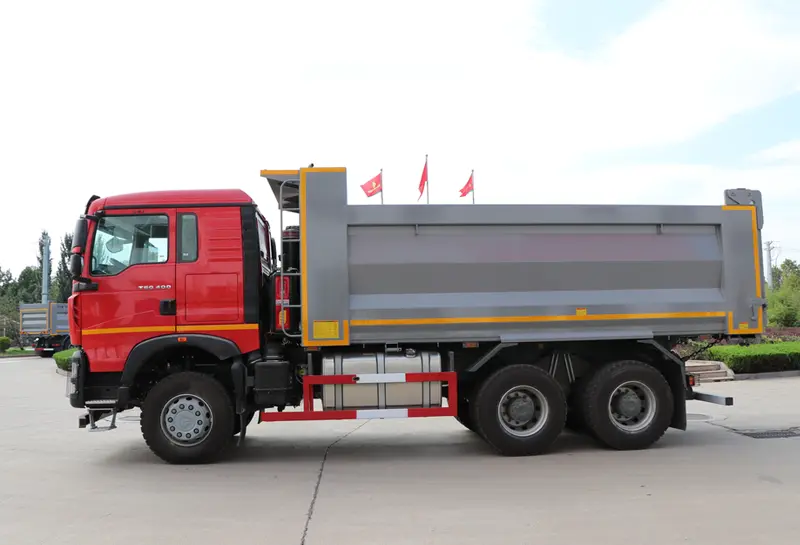

Used howo tipper trucks for sale in china – T5G 6×4 dump truck is suitable for various heavy-duty transportation and engineering operation scenarios due to its strong power and stable performance. Used howo tipper trucks for sale in china – T5G 6×4 dump trucks high load carrying capacity and reliable mechanical performance make it perform well in projects such as construction sites, mines and road construction. User evaluations generally agree that the model has strong power and stable operation, and is suitable for long hours of high-intensity operation.
Used howo tipper trucks for sale in china – T5G 6×4 dump truck is a heavy duty truck suitable for urban construction waste and mining projects. Its main features are as follows:
Power system: Equipped with CNK MC07.34-50 engine, 6-cylinder, displacement 6.87L, maximum horsepower 340, maximum torque 1250N·m, equipped with HW10 transmission, meet the Euro 6 emission standards.
Load and size: the total mass of the vehicle is 25 tons, the rated load is 12.82 tons, the cargo box size is 5.6×2.3×1.165 meters, and the body size is about 8.23×2.496×3.45 meters.
Chassis and braking: rear axle speed ratio 5.45, equipped with ABS anti-lock system, tire specification 12.00R20 16PR, fuel tank capacity 400L.
Advantages: strong power, strong load capacity, environmental protection and energy saving, high safety, wide range of application, suitable for long-distance transportation and complex road conditions.
MAIN DESCRIPTION | ||||
Overall Dimension | 8545mm* 2496mm* 3350mm (L*W*H) | |||
Payload | 25-30ton | Curb Weight | 12500kg | |
Front Overhang | 1500mm | Rear Overhang | 1870mm | |
Wheelbase | 3825mm + 1350mm | |||
CHASSIS | ||||
Chassis Brand | SINOTRUK HOWO | |||
Driving Type | 6×4 | |||
Cab | HW76, left hand drive, air-conditioner, one bed | |||
Engine and Power | Brand: SINOTRUK, diesel engine, 336hp (247kw), 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling, Euro II emission standard |
|||
Steering | ZF8098, hydraulic steering with power assistance | |||
Transmission | HW15710, 10 forward speeds and 2 reverse | |||
Clutch | Model: 430, diaphragm clutch | |||
Front Axle | HF9, load capacity 9 ton, drum brake | |||
Rear Axle | HC16 tandem axle, load capacity 13000kg x2, ratio 5.73 | |||
Tire | 12.00-20, 11units including 1 spare tire | |||
CARGO BODY | ||||
Inside Dimension | 5600mm* 2300mm* 1500mm (L*W*H) | |||
Hydraulic Cylinder | Ventral T-type lift system | |||
Steel sheet thickness | Floor 8mm, side wall 6mm | |||
Tailgate | One-piece tailgate with upper articulation, safety lock system |
