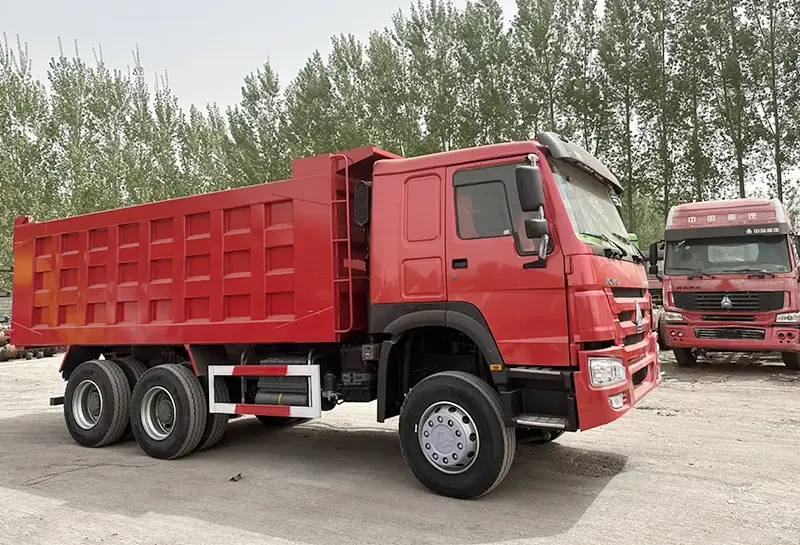

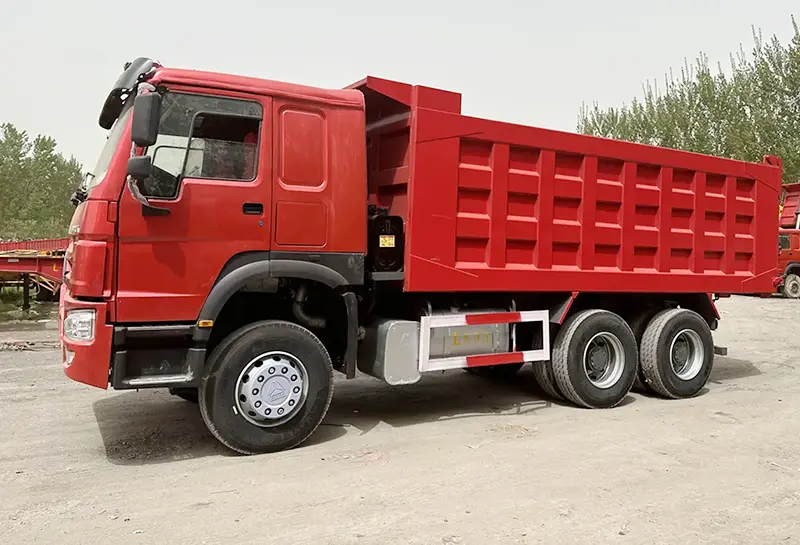

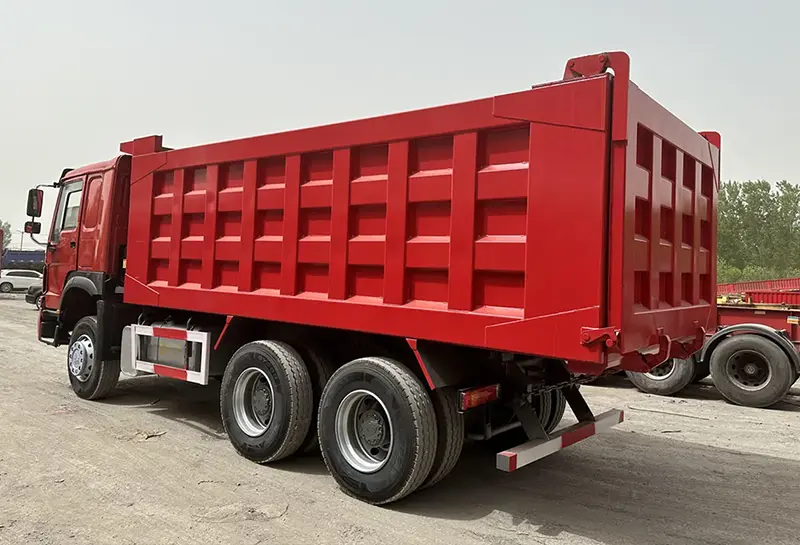

The Sinotruk HOWO 6×4 10-Wheel Tipper Truck Mining Dump Truck For Sale is an exceptionally robust and heavy-duty truck specifically designed to excel in mining and construction applications. This product description will be divided into four sections to provide a comprehensive overview of this powerful truck.
This Used howo truck price is equipped with a high-performance engine that delivers exceptional power, making it well-suited for heavy load-bearing tasks in challenging terrains.
The Sinotruk Used howo truck price is engineered to transport heavy payloads, making it well-suited for carrying materials such as mined ore, rocks, and construction debris in rugged environments.
The Sinotruk Used howo truck price have a reputation for reliability, and this mining dump truck is no exception. It is engineered for continuous operation in demanding conditions, minimizing downtime.
In summary, the Sinotruk Used howo truck price For Sale is a formidable and dependable workhorse engineered to meet the rigorous demands of mining and construction applications. With its potent engine, robust construction, advanced features, and focus on operator comfort, safety, and maintenance, it stands as an excellent choice for those seeking a durable and reliable mining dump truck for their operations.
Vehicle series | Used howo truck price- HOWO 6×4 Tipper | |
Cab | HW76 | |
Engine | Model | Euro 3: WD615.47C |
Power (Ps/rpm) | 249/1900; 279/2000 | |
Maximum torque (Nm/rpm) | 1490/1200- 1500; 1590/ 1200- 1500 | |
Displacement (L) | 9.726 | |
Transmission | SINOTRUK HW series 10 gears Transmission,Transmission with main and auxiliary transmission structure, , main transmission with double counter shaft ,auxiliary transmission with planetary reduction. with PTOWD 615.47 standard HW19710 | |
Clutch | Φ430 diaphragm spring Clutch,Hydraulic control air assisted. | |
Front axle | HF9 drum-type, rated load of 9t | |
Rear axle | HC16 double reduction (central reduction+wheel reduction),speed ratio:5.73, 4.8 | |
Suspension | Steer Axle | front and rear leaf spring suspension, front suspension with shock absorber,transverse stabilizer |
Drive Axle | front and rear leaf spring suspension,rear suspension is disconnected type with transverse stabilizer. | |
Braking system | Service brake | dual-circuit air pressure brake |
Parking Brake | spring storage energy without air | |
Auxiliary brake | Engine exhaust braking. standard Engine EVB,ABS, optional auto clearance adjusting arm. | |
Electric system | Voltage | 24V |
Generator | 2240W | |
Batteries | 12V/ 165Ah, 2 pieces | |
Starter Power | 24V, 7.5kW | |
Wheels & Tyres | Tyres | 12.00 R20 |
Optional | 12.00 R24, 12.00-24 | |
Fuel Tank | Capacity | 300 Liter |
Weights (kg) | Curb weight (vehicle/chassis) | 12170/8630; 12290/ 8660; 12450/ 8690; 12270/ 8710 |
Gross Vehicle Weight | 25000 | |
Rated load | 12420~1 2700 | |
Vehicle Dimensions (mm) | Overall length x Overall width x Overall height | (7545~ 8545)× 2496× 3170 /3450 |
Wheelbase | (3225~ 3825) +1350 | |
Front/rear overhang (vehicle/ chassis) | 1500/ (1470/715); 1500/ (1670/ 740); 1500/ (1870/ 900) | |
Wheel track of front axle | 2041 | |
Wheel track of rear axle | 1830/ 1850 | |
Performance | Maximum speed (km/h) | 79/ 83 |
Maximum gradeability (%) | 20 | |
Minimum turning diameter (m) | 15/ 16/ 17 |
Used howo truck price | used howo truck for sale | used howo tipper trucks for sale in china
Used howo truck price | used howo truck for sale | used howo tipper trucks for sale in china
Used howo truck price | used howo truck for sale | used howo tipper trucks for sale in china
Engine: WP12.400E201
Horsepower: 371hp
Emission Standards : Euro 2
Engine: WD615
Horsepower : 371hp
Emission Standards : Euro 2
Engine: WD615
Horsepower : 371hp
Emission Standards : Euro 2
Engine: WP10H400E62
Horsepower : 420hp
Emission Standards : Euro 2
Engine: WP10.340E32
Horsepower: 371hp
Emission Standards : Euro 2
Engine: WP12.400E201
Horsepower: 336hp
Emission Standards : Euro 2
